HG PRO PEM Hydrogen Generator
HydroGen
HG PRO series : H2 Generator for GC carrier (grade 7)
Available in the Following Configurations:
- HG PRO 120 - Hydrogen Generator 120 cc/min Ultra High Purity
- HG PRO 180 - Hydrogen Generator 180 cc/min Ultra High Purity
- HG PRO 260 - Hydrogen Generator 260 cc/min Ultra High Purity
- HG PRO 350 - Hydrogen Generator 350 cc/min Ultra High Purity
- HG PRO 500 - Hydrogen Generator 500 cc/min Ultra High Purity
- HG PRO 700 - Hydrogen Generator 700 cc/min Ultra High Purity
- HG PRO 700 LN - Hydrogen Generator 700 cc/min Ultra High Purity LN
- HG PRO 900 - Hydrogen Generator 900 cc/min Ultra High Purity
- HG PRO 1100 - Hydrogen Generator 1100 cc/min Ultra High Purity
- HG PRO 1300 - Hydrogen Generator 1300 cc/min Ultra High Purity
- HG PRO 1300 LN - Hydrogen Generator 1300 cc/min Ultra High Purity LN
- HG PRO 1500 - Hydrogen Generator 1500 cc/min Ultra High Purity
The HydroGen series HG PRO is able to generate up to 1500 cc/min of Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 psi). The HG PRO includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are used.
The innovative gas drying system (two-column drying PSA system with automatic regeneration) ensures the maximum grade of hydrogen purity, it is completely maintenance-free and allows continuous operation, 24 hours a day. The on-board CPU automatically check for internal leaks and constantly control the operating parameters to guarantee full safety.
Up to 20 units can be connected in parallel using an external control box. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.

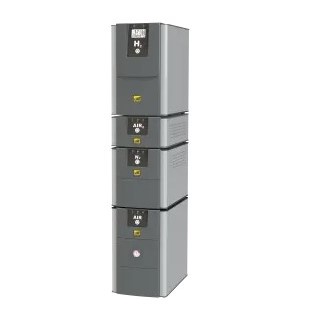

Stackable with various other models: AG-OFCAS35; NG-EOLO; AG-ZA-Fid
Product features:
- New long-life multilayer PEM cell
- High flow rate up to 1500 cc/min
- High pressure up to 16 bar (232 psi)
- RS 232/485 and USB standard
- LAN optional
- Auto refill standard
- High purity: 99.99999%
- Dryer with no maintenance
- Safety routine and self-monitoring
- Reduced foot print
- High pressure GLS electronically controlled (patented)
Main applications:
- Carrier gas for GC and GS-MS
- GC-FID / GC-NPD / GC-FPD / THA
- ICP-MS collision gas
- Refilling metal hydride tanks for use with fuel cells
Options:
- 6930.00.100 - Pressure Up to 16 Bar (232 PSI)
- 6930.00.010 - LAN port option
- 6930.10.001 - WiFi Module for HG BASIC / HG PRO
- 6930.00.023 - Autorefill membrane pump option
Available Accessories:
- 6930.00.110 - External Water Tank 5L for auto-refill
- 6930.00.115 - External Water Tank 10L for auto-refill
- 6050.00.000 - Cable RS-485 for tower
- 6930.00.090 - Carbon filter for external water tank
Available Consumables:
| Product Code | Periodicity | Description |
| 6930.00.091 | 6 months | Deionizer water filter for HG BASIC/PRO and KUBE last series with silver |
| 6930.00.095 | 1 year | Air carbon filter cartridge for external water tank |
Technical Specifications:
| Model: HG PRO | 120 | 180 | 260 | 350 | 500 | 700 | 900 | 1100 | 1300 | 1500 |
| General data | ||||||||||
| Electrolytic cell | Long life Multilayer PEM technology | |||||||||
| Drying system | PSA (Pressure Swing Adsorption) | |||||||||
| H2 purity | >99.99999% * | |||||||||
| Outlet pressure | 12 bars (174 psi) / 16 bars (232 psi) (optional) | |||||||||
| H2 flow-rate (Max) | 120 | 180 | 260 | 350 | 500 | 700 | 900 | 1100 | 1300 | 1500 |
| Dimensions | 27 x 44 x 41(H) cm | |||||||||
| Net weight (no water in tank) | 16 Kg | 19.5 Kg | 21.5 Kg | 23 Kg | ||||||
| Communication | ||||||||||
| RS-232 / USB / RS-485 | Standard | |||||||||
| Digital I/O | Standard | |||||||||
| LAN | Optional | |||||||||
| Software functions | ||||||||||
| Parallel mode | Ready on board | |||||||||
| Automatic tank refill | Standard | |||||||||
| Fill Hydride canister function | Standard | |||||||||
| Water | ||||||||||
| Quality Required | Deionized, ASTM II, <0.1uS | |||||||||
| Supply pressure (min, Max) | 0.2 bar (1.4 psi), 1 bar (14 psi) | |||||||||
| Supply flow rate (min, Max) | 0.2 l/min, 1.5 l/min | |||||||||
| Internal tank capacity | 3 L | |||||||||
| External tank capacity | 5 or 10 L (optional) | |||||||||
| Electrical data | ||||||||||
| Type of connection | IEC 320-C13 | |||||||||
| Power supply voltage | 100-240 Vac 50/60 Hz | |||||||||
| Installed power (Max) | 320W | 600W | 750W | |||||||
| Fuse rating (5x20) | 4A – 250 Vac | 6.3A – 250 Vac | ||||||||
| Connections | ||||||||||
| Hydrogen outlet | 1/8” compression fitting | |||||||||
| Water | Quick release push-in fitting | |||||||||
| Operating / storage conditions | ||||||||||
| Working Temperature | 5-40°C (41-104°F)** | |||||||||
| Storage Temperature | 1-50°C (34-122°F) | |||||||||
| Humidity (max, non condensing) | 70% | |||||||||
| Noise | < 25dB(A) | |||||||||
| IP rating | IP20 | |||||||||
| Pollution degree rating | 2 (with no aromatic compounds) | |||||||||
| Altitude | < 2000m | |||||||||
* referred to O2, dew point <-75°C
** with temperature > 35°C the H2 purity could be less
- Model: HG PRO
- Manufactured by: LNI SWISSGAS
