Biotech Systec AF Mini Degassing Chamber, Analytical, 670 ul, 4 mL/min, Biocompatible - 9000-1006 (Replaced by 9000-1009)

THIS PRODUCT HAS BEEN REPLACED BY PART NUMBER: 9000-1009

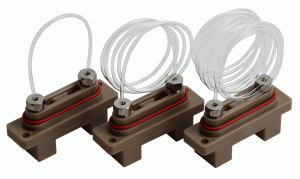

Biotech Systec AF Mini Degassing Chamber, Analytical, 670 µl, 4 mL/min, Biocompatible

Part Number: 9000-1006

This MINI Degassing Chamber is the ideal solution to keep bubbles out of fluidic systems and liquid chromatography pumps and ensure a stable baseline. Systec(R) AF is compatible with a wide range of typical organic solvents used in HPLC and offers a chemically inert flow path.

The Mini degassing chamber Is used in degassing equipment made for the largest analytical instrument manufacturers in the world. Since quality can’t be compromised the same components are also used in the DEGASi® series of stand-alone degassers.

The degassing chamber was designed to be easy to prime, and is configured with a Systec® AF degassing membrane (tubing) to provide maximum degassing capacity with the absolute minimum internal volume (less than 3% of PTFE designs with comparable degassing capacity) and a chemically inert, metal free flow path. Degassed mobile phase is available in three minutes or less!

GENERAL SPECIFICATIONS

•  Degassing Channel Tubing: PTFE® AF Degassing
•  Channel Pressure Rating: 70 PSI. (Chambers with higher pressure ratings are avalible, please contact us for more info)
•  Wetted Materials: PTFE® AF, PEEK and Tefzel Vacuum Housing Materials: PPS. (Wetted materials may vary depending on the specific model)

GPC APPLICATIONS

These standard degassing chambers are 100% Biocompatible, For customers working with applications, with 100% organic solvents. we recommend the Stented degassing chambers. These chambers have a short piece of a stainless steel tube inside the the ends of the degassing membrane in order to get the ferrule inside the bulkhead to give an even more secure grip. As standard option we have P/N 9000-1184, 480 µl stented Systec AF analytical degassing chamber. Other sizes available upon request.  Please note that we also supply preparative stented degassing chambers.

SPECIFICATIONS:
