Heraeus PSD 185 Deuterium (D2) Lamp Power Supply, OEM Version, pre-heating 2.0/ 0 V, 24 VDC - 80000252

Price: £339.30


Qty.
+-

Heraeus PSD 185 Deuterium (D2) Lamp Power Supply, OEM Version, pre-heating 2.0/ 0 V, 24 VDC

Brand: Heraeus Noblelight
Product Number: 80000252

The PSD 185 Deuterium Lamp Power Supply is a high performance, low cost, compact and highly reliable switching power supply. It is designed to operate on a 24 VDC input voltage. The supply has very low noise and drift characteristics and uses a novel ignition circuit (US patent No.5.530.319; EP No. 94 118 802.1) to ensure a soft and reliable arc ignition, even when the lamp is hot. All Heraeus 30 W Deuterium Lamps with 2 V, 2.5 V, 10 V and 12 V stabilized direct current heaters can be operated in the optimum manner, to achieve maximum output stability and lifetime. The PSD 185 is also suitable for most lamps made by other manufacturers. The power supply is fully automatic, from lamp ignition to steady-state operation. The small size facilitates OEM integration of the power supply and lamp in a compact system, for flexibility and reduced cost.

Automatic Lamp Operating Sequence

Automatic lamp ignition is started by connecting the external 24 VDC input voltage to the PSD 185 power supply. The lamp heater is then pre-heated (warm-up cycle) for a period of 10 seconds. After this, the strike voltage is applied and when the lamp strikes, the heater voltage is automatically adjusted to a preset level between 0 to 6 V depending on the lamp type used. Should the lamp not strike immediately, then further attempts are made automatically. The supply is preset to run the lamp at an anode current of 300 mA. An optional disable control is available by applying an external 5 VDC to the “disable” input.

Features

  • Low cost, compact OEM design
  • Soft and reliable ignition including hot-lamp restrike
  • Provides optimum output and lifetime for Heraeus direct current heater Deuterium Lamps
  • Fully automatic from lamp start-up to steady-state operation
  • Heating voltage 2, 2.5, 10 and 12 V
  • Anode current 300 mA
  • Input voltage 24 VDC

Technical Specifications:

    PSD 184
OEM version		 PSD 185
OEM version		 PSD 186
Bench top
Input


 		 Input Voltage 85-264 Vac 24 ± 2.4 Vdc 85-264 Vac
Input Current 1A max 2 A max 1 A max
Input Power 80 VA < 45 W 100 VA
Fuse on board 1A on board, 2 Amp slow 1.6 A slow
Output Anode Voltage (with Lamp) 55 – 115 Vdc 55 – 110 Vdc 55 – 115 Vdc
Anode Voltage (w/o Lamp) 140 ± 5 Vdc 140 ± 5 Vdc 140 ± 5 Vdc
Anode Current 300 mAdc ± 1 % 300 mAdc ± 1 % 300 mAdc ± 1 % fixed
100 – 400 mA adjustable
Anode Current Stability (0.1–10Hz) ≤ 5 x 10–6 p-p @ 300 mA ≤ 5 x 10–6 p-p @ 300 mA ≤ 5 x 10–6 p-p @ 300 mA
Anode Current Drift over temperature (after 30 min warm-up), 0–40 °C ≤ ± 0.5 % / °C ≤ ± 0.5 % / °C ≤ ± 0.5 % / °C
Anode Current Drift over time (after 30 min warm-up, fi xed temp.) ± 0.01 % / h max ± 0.01 % / h max ± 0.01 % / h max
Heater Voltage, Heater Current
Warm-up Time 10 s 10 s 10 s
Strike Voltage 600 – 50 V 600 – 50 V 600 – 50 V
24 V Supply (20 W), 1 Adc max +24Vdc (+1.5V/-0.5V) n/a n/a
Rippel @ 1A 0.5Vss/100Hz, 0.1Vss/30kHz n/a n/a
Environmental Characteristics
Operation

 		 Temperature Range 5 to 35 °C
Humidity < 95%, non condensing
Altitude 0 to 2000m
Storage

 		 Temperature Range -40 to 60 °C
Humidity < 95%, non condensing
Altitude < 12.000 m
Cooling Requirement No forced cooling required 30m3 /h of forced air across the Components side of the board n/a
Low Voltage Directive 2006 / 95/EG
EMC-Directive EN 55011 Class B
Electrical Safety EN 61010 / 08/2002

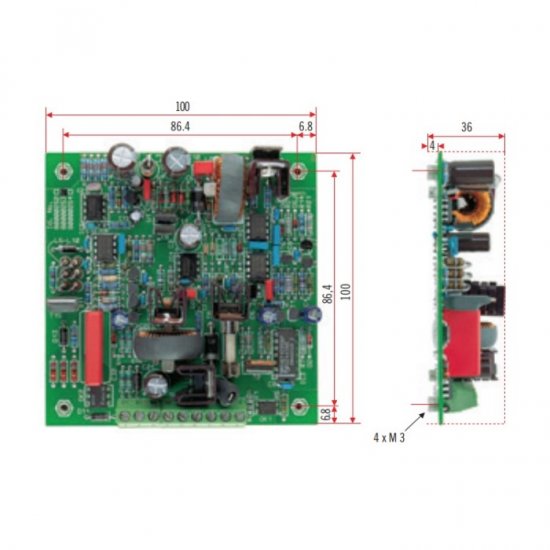

Dimensions (L x W x H) in mm 190 x 100 x50 (board only)
215x127x60 (w heat sink)		 100 x 100 x 36 235 x 260 x 155
Dimensions (L x W x H) in inches 8.46 x 5 x 2.36 4 x 4 x 1.4 9.25 x 10.24 x 6.1
Protection IP 00 IP 00 IP 20
Weight 0.6 kg 160 g 3.3 kg
Heater Voltage and Current
Type Part Number Warm-up Operation
Voltage (Vdc) Current
(Adc typ)		 Voltage (Vdc) Current
(Adc typ)
PSD 184 80000267 2.5 6.0 0 / 1* 0 / 2.5
2.0* 6.0 0 / 1* 0 / 3
PSD 185
(2 V)		 80000252 2.0 6.0 0 0
80006380 2.0 6.0 1 1.8
PSD 185 (2.5 V) 80000253 2.5 6.0 0 0
80033358 2.5 6.0 1 1.8
PSD 185
(3 V)		 80055767 3.0 6.0 1 1.8
PSD 185 (10 V) 80038340 10 1.1 6 0.6
PSD 185 (12 V) 80000254 12 0.9 3 0,3
80040607 12 0.9 0 0
PSD 186 80026960 2; 2.5; 3; 6; 9; 10; 12 8.0 max adjustable between 0–7 5.0 max

* selectable by jumper


  • Model: 80000252
  • Manufactured by: Heraeus Noblelight

Additional Images
