Asahipak NH2P-50 columns with amino groups

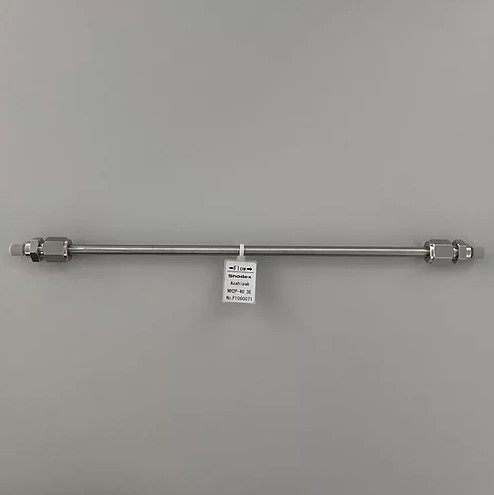

Asahipak NH2P-40 3E HPLC Standard Column - 4 μm - 3.0mm I.D. x 250mm Length
Shodex Product Code: F7630007
The robust Polymer-based HILIC Amino column for many general applications
Specifications:
| Description |
Asahipak NH2P-40 3E 250x3.0mm |
| Quantity |
1 pc |
| Functional group |
AMINO |
| Gel material |
Polyvinyl alcohol |
| Mode of Separation |
Polymer-based Hydrophilic Interaction Chromatography HILIC |
| Plates per column |
≥ 8,500 |
| Housing material |
steel |
| Maximum pressure |
13 MPa (130 bar) |
| Usual flow rate |
0.30 to 0.35 mL/min |
| Maximum flow rate |
0.5 mL/min |
| Temperature range |
15 to 50°C |
| pH range |
2 to 13 |
| Shipping solvent |
CH3CN |
| Internal Diameter |
3.0 mm |
| Length |
250 mm |
| Brand |
Asahipak |
| Particle Size |
4 µm |
| pH Minimum |
3.0 |
| pH Maximum |
13.0 |
| Pore Size |
100 Å |
| USP Class |
L82 |
Features
- Suitable for saccharides analysis using HILIC mode
- Polymer-based packing material provides excellent chemical stability and minimum deterioration over extended time period
- Easily regenerated by washing in an alkaline solution
- Appropriate for evaporative light scattering detector, corona charged aerosol detector, and LC/MS
- Fulfills USP-NF L82 requirements - Polyamine chemically bonded to cross-linked polyvinyl alcohol polymer, 5 μm in diameter.
- Suitable for: Proteins Peptides - HILIC | Amino acids - HILIC | Mono-, di-saccharides, and sugar alcohols Saccharides and sugar alcohols - HILIC | Amino sugars - HILIC | Acidic sugars - Ion exchange | Oligosaccharides - HILIC | Drugs Metabolites - HILIC | Water-soluble vitamins - HILIC | Hormones / Neurotransmitters - HILIC |
Possible Applications:
- Analysis of Trisaccharides (1) (NH2P-40 3E)
- Comparison between NH2P-40 3E and its Conventional Type (NH2P-50 4E)
Range of Polymer-based Hydrophilic Interaction Chromatography (HILIC) Columns (Asahipak)
Standard Columns - Base Material: Polyvinyl alcohol
| Product Code |
Product Name |
Plate Number (TP/column) |
Functional Group |
Particle Size (µm) |
Pore Size (Å) |
Column Size (mm) I.D. x Length |
Shipping Solvent |
| F7630005 |
Asahipak NH2P-50 4B |
≥ 1,500 |
Amino |
5 |
100 |
4.6 x 50 |
CH3CN |
| F7630002 |
Asahipak NH2P-50 4D |
≥ 5,500 |
Amino |
5 |
100 |
4.6 x 150 |
CH3CN |
| F7630001 |
Asahipak NH2P-50 4E |
≥ 7,500 |
Amino |
5 |
100 |
4.6 x 250 |
CH3CN |
| F6710016 |
Asahipak NH2P-50G 4A |
(guard column) |
Amino |
5 |
- |
4.6 x 10 |
CH3CN |
| F7630007 |
Asahipak NH2P-40 3E |
≥ 8,500 |
Amino |
4 |
100 |
3.0 x 250 |
CH3CN |
| F6710030 |
Asahipak NH2P-50G 3A |
(guard column) |
Amino |
5 |
- |
3.0 x 10 |
CH3CN |
Semi-micro columns - Base Material: Polyvinyl alcohol
| Product Code |
Product Name |
Plate Number (TP/column) |
Functional Group |
Particle Size (µm) |
Pore Size (Å) |
Column Size (mm) I.D. x Length |
Shipping Solvent |
| F7630006 |
Asahipak NH2P-50 2D |
≥ 3,500 |
Amino |
5 |
100 |
2.0 x 150 |
CH3CN |
| F6713000 |
Asahipak NH2P-50G 2A |
(guard column) |
Amino |
5 |
- |
2.0 x 10 |
CH3CN |
| F7630010 |
Asahipak NH2P-40 2E |
≥ 7,000 |
Amino |
4 |
100 |
2.0 x 250 |
CH3CN |
Preparative columns [ Preparative columns are made to order. ] - Base Material: Polyvinyl alcohol
| Product Code |
Product Name |
Plate Number (TP/column) |
Functional Group |
Particle Size (µm) |
Column Size (mm) I.D. x Length |
Shipping Solvent |
| F6830001 |
Asahipak NH2P-50 10E |
≥ 10,000 |
Amino |
5 |
2.0 x 150 |
CH3CN |
| F6710016 |
Asahipak NH2P-50G 4A |
(guard column) |
Amino |
5 |
2.0 x 10 |
CH3CN |
| F6830031 |
Asahipak NH2P-90 20F |
≥ 10,000 |
Amino |
4 |
2.0 x 250 |
CH3CN |
| F6710017 |
Asahipak NH2P-130G 7B |
(guard column) |
Amino |
13 |
7.5 x 50 |
CH3CN |
