SUGAR KS-800 columns with Sulfo (Na+) groups

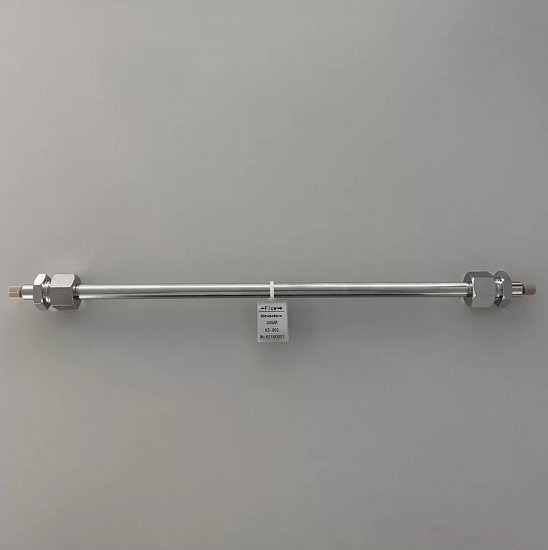

SUGAR KS-802 HPLC Standard Ligand exchange and size exclusion Column - 6μm - 8.0mm I.D. x 300mm Length
Shodex Proaduct Number: F6378020
The Ligand Exchange column for mono-, oligo- and poly-saccharides
Related Products:
SUGAR KS-G 6B Guard Cartridge Column - F6700020
Specifications:
| Description |
SUGAR KS-802 300x8mm |
| Quantity |
1 pc |
| Chemistry Producers Term |
KS |
| Gel material |
styrene divinylbenzene copolymer |
| Separation |
Ligand Exchange |
| Functional group |
Sulfo (Na+) |
| Plates per column |
≥ 17,000 |
| Particle Size |
6 µm |
| Pore Size |
- |
| Housing material |
steel |
| Maximum pressure |
5.0 MPa (50 bar) |
| Usual flow rate |
0.5 to 1.0 mL/min |
| Maximum flow rate |
1.5 mL/min |
| Temperature range |
20 to 85°C |
| Exclusion limit |
10,000 |
| Shipping solvent |
H2O |
| Internal Diameter |
8 mm |
| Length |
300 mm |
| Brand |
Sugar |
| Particle Size |
6 µm |
| USP Class |
L22, L58 |
SUGAR KS-801 and KS-802
- Separates mono- and oligo-saccharides by combination of ligand exchange (Na+) and size exclusion mode
- Only water is required for the analysis of neutral sugars
- Fulfill USP L22 requirements - A cation-exchange resin made of porous polystyrene gel with sulfonic acid groups, 5-15 μm in diameter.
- Fulfill USP L58 requirements - Strong cation-exchange resin consisting of sulfonated cross-linked styrene-divinylbenzene copolymer in the sodium form, about 6 to 30 μm in diameter.
- These columns are mainly used in routine quality controls in food analysis.
- Suitable for: Mono-, di-saccharides, and sugar alcohols Saccharides and sugar alcohols - Ligand exchange + SEC | Oligosaccharides - SEC | Oligosaccharides and sugar alcohols - Ligand exchange + SEC
Possible Applications:
- Amylose (KS-802)
- Analysis of Cyclodextrins According to Japan's Specifications and Standards for Food Additives Method (KS-802)
- Analysis of Fructooligosaccharide Components (KS-802 + KS-801)
- Cello-oligosaccharides and Ethanol (KS-802)
- Cyclodextrins (GS-220, KS-802)
- Hydrolyzed Dextran (2) (KS-802)
- Hydrolyzed Dextran (5) (KS-802)
- Low-Molecular-Weight Water Soluble Dietary Fiber (GS-220 HQ, KS-802)
- Oligosaccharide in Soy Bean (KS-801, KS-802)
- Pullulan, Saccharides and Ethanol (KS-802)
- Starch Syrup (KS-802)
- Sweetener (KS-802)
Ligand exchange and size exclusion Columns
Standard columns | Base Material: Styrene divinylbenzene copolymer
| Product Code |
Product Name |
Plate Number
(TP/column) |
Functional Group
(Counter Ion) |
Exclusion Limit
(Pullulan) |
Particle Size
(μm) |
Column Size (mm)
I.D. x Length |
Shipping Solvent |
| F6378102 |
SUGAR SC1011 |
≥ 13,000 |
Sulfo (Ca2+) |
1,000 |
6 |
8.0 x 300 |
H2O |
| F6700090 |
SUGAR SC-G 6B |
(guard column) |
Sulfo (Ca2+) |
— |
10 |
6.0 x 50 |
H2O |
| F6378105 |
SUGAR SP0810 |
≥ 11,000 |
Sulfo (Pb2+) |
1,000 |
7 |
8.0 x 300 |
H2O |
| F6700081 |
SUGAR SP-G 6B |
(guard column) |
Sulfo (Pb2+) |
— |
10 |
6.0 x 50 |
H2O |
| F6378106 |
SUGAR SP0810 8C |
≥ 3,000 |
Sulfo (Pb2+) |
1,000 |
7 |
8.0 x 100 |
H2O |
| F6378010 |
SUGAR KS-801 |
≥ 17,000 |
Sulfo (Na+) |
1,000 |
6 |
8.0 x 300 |
H2O |
| F6378020 |
SUGAR KS-802 |
≥ 17,000 |
Sulfo (Na+) |
10,000 |
6 |
8.0 x 300 |
H2O |
| F6378025 |
SUGAR KS-803 |
≥ 17,000 |
Sulfo (Na+) |
50,000 |
6 |
8.0 x 300 |
H2O |
| F6378035 |
SUGAR KS-804 |
≥ 17,000 |
Sulfo (Na+) |
400,000 |
7 |
8.0 x 300 |
H2O |
| F6700020 |
SUGAR KS-G 6B |
(guard column) |
Sulfo (Na+) |
— |
10 |
6.0 x 50 |
H2O |
Ligand exchange and HILIC Columns
Standard columns | Base Material: Styrene divinylbenzene copolymer
| Product Code |
Product Name |
Plate Number
(TP/column) |
Functional Group
(Counter Ion) |
Particle Size
(μm) |
Pore Size
(Å) |
Column Size (mm)
I.D. x Length |
Shipping Solvent |
| F7001003 |
RSpak DC-613 |
≥ 5,500 |
Sulfo (Na+) |
6 |
100 |
6.0 x 150 |
H2O/CH3CN = 30/70 |
| F6700170 |
RSpak DC-G 4A |
(guard column) |
Sulfo (Na+) |
10 |
— |
4.6 x 10 |
H2O/CH3CN = 30/70 |
| F7001300 |
SUGAR SZ5532 |
≥ 5,500 |
Sulfo (Zn2+) |
6 |
— |
6.0 x 150 |
H2O/CH3CN = 30/70 |
| F6700110 |
SUGAR SZ-G |
(guard column) |
Sulfo (Zn2+) |
6 |
— |
4.6 x 10 |
H2O/CH3CN = 30/70 |
| F7001400 |
SUGAR SC1211 |
≥ 5,500 |
Sulfo (Ca2+) |
6 |
50 |
6.0 x 150 |
H2O/CH3CN = 75/25 |
| F6700120 |
SUGAR SC1211G 4A |
(guard column) |
Sulfo (Ca2+) |
10 |
— |
4.6 x 10 |
H2O/CH3CN = 75/25 |
Pharmacopoeia Method Relevant Columns
Standard columns | Base Material: Styrene divinylbenzene copolymer
| Product Code |
Product Name |
Functional Group
(Counter Ion) |
Particle Size
(μm) |
Column Size (mm)
I.D. x Length |
Shipping Solvent |
| F6379300 |
EP SC1011-7F |
Sulfo (Ca2+) |
8 |
7.8 x 300 |
H2O |
| F6700090 |
SUGAR SC-G 6B (guard column) |
Sulfo (Ca2+) |
10 |
6.0 x 50 |
H2O |
| F6379230 |
USPpak MN-431 |
Sulfo (Ca2+) |
8 |
4.0 x 250 |
H2O |
