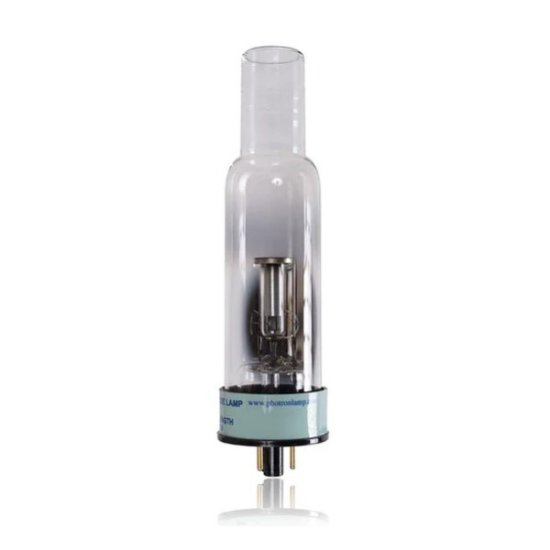

Photron 37 mm Single Element Hollow Cathode Lamp (HCL), 2 Pin Uncoded, Erbium (Er) - P816

Photron 37 mm Single Element Hollow Cathode Lamp (HCL), 2 Pin Uncoded, Erbium (Er)

P816 - Hollow Cathode Lamp (HCL) - Erbium

Product Number: P816

Diameter: 37mm / 1.5” (Inch)

Instrument

• To suit Atomic Absorption Spectroscopy Instruments

Pin Type / Connectivity

• Pin Type: Two (2) Pin ~ Standard
• Coding: Non-coded

Wavelength

• Elements: Erbium (Er)
• Primary Wavelengths: - 400.8 nm
• Alternative Wavelengths: 389.3 nm

Optical

• Window material: Quartz

Hollow Cathode Lamps (Single Element) - All

Hollow cathode lamps produced by Photron are designed and manufactured to achieve all of the following fundamental requirements for a spectral line source

• Intense emission of resonance (ground state derived) lines.
• Narrow line width, for maximum sensitivity and linearity.
• Minimal spectral interference from continuum emission, present in the cathode.
• Rapid warm up to produce stable long term light emission.
• Noise free operation. + Long running life and a 5 year shelf life.
• Cathode materials and geometry achieve a combination of spectral purity and a suitable sputtering rate. (A high sputtering rate will give high intensity at the expense of lamp life, sensitivity and linearity).

Hollow Cathode Lamp P800 Series - (37mm / 1.5") Single Element

Photron's P800 Series for all AAS compatible with 37mm or 1.5" base 2 Pin Octal Base Hollow Cathode Lamps including AAS Instruments by Varian, Agilent, GBC Scientific, Analytic Jena, Thermo & Unicam.
