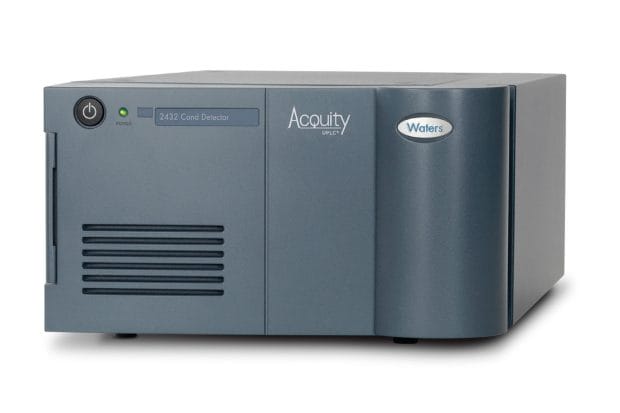

Waters 2432 Conductivity Detector for HPLC Systems

Price:
Live chat below or contact us for latest price.


Download Data Sheet

2432 Conductivity Detector for HPLC Systems

Please contact our Sales Team for a quote.

Exceptional sensitivity and stability for challenging separationsThe 2432 Conductivity Detector features exceptional sensitivity and stability.

Single-column and suppressor-based ion chromatography require exceptional sensitivity and stability. The 2432 Conductivity Detector, in a non-suppressed ion chromatography method, provides a highly sensitive and stable performance.

The cell design of the 2432 Conductivity Detector diminishes apparent void volume disturbances for more reliable peak quantitation. Precise temperature control of the flow cell coupled with the detector’s ability to collect absolute and auto-zeroed data eliminate baseline drift and enable the chromatographer to perform other tasks.

Overview

  • Achieve high sensitivity and exceptional stability with temperature-controlled flow cell
  • Reduce flow path volume for narrow-bore applications
  • Increase operational uptime with self and user diagnostics
  • Ensure a precise conductivity base range with user-adjustable cell constant

Recommended Use: For single-column ion chromatography requiring high stability and sensitivity.

Achieve reliable peak quantitation and maintain stability

The 2432 Conductivity Detector features exceptional sensitivity and stability for single-column or suppressor-based ion chromatography. The 2432 cell design diminishes apparent void volume disturbances and offers more reliable peak quantitation. Additionally, the 2432 Conductivity Detector’s temperature control combined with autozero capabilities ensure maintained baseline stability during your analysis.

Specifications:

Operating Specifications
Measuring range 0 to 10,000 μS/cm without range switching
Drift <0.5%/hr
Noise ≤0.005 μS/cm
Temperature control 20 °C–50 °C in steps of 5 °C and Off
Temperature stability ±0.1 °C
Sampling rate 10 points/s
Cell Specifications
Electrodes Ring-shaped electrodes made from stainless-steel
Cell volume 0.8 μL
Pressure limit 725 psi
Wetted materials Chemically inert PCTFE and stainless-steel




  • Model: 2432 Conductivity Detector
  • Manufactured by: Waters
